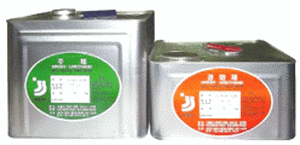

point첨부이미지 : 건식주입제.bmp




BE-200 Low Viscosity




To make use of the merit of Epoxy to the maximum, BE-200 is made for the reinforcement of structure, floating parts(loose parts) and for injection under iron plate. Low viscosity type does not make gaps during injection and it is easy to grout in order to repair the cracks of bridge, dams, columns and slabs. lt contributes to restore the strength of concrete because its physical strength is strong and adhesive strength, anti - corrosive and anti - rust effect is excellent.



※ Uses


● For  reinforcement  for iron - plate and H-beam.

● Injection to mechanical  loading parts.

● Filling up floating parts of the bottom.

● Injection to fine cracks


Characteristics


● Automatic injector and micro capsule method can be easily used.

● Mechanical strength is excellent

● Low viscosity type does not generate openings during injection.

● Little hardening contraction


※ Quality



항  목



BE - 200

Main

Hardener

Main Ingredients

Epoxy Resin

Poly amid amin

Outlook

Transparency

Yellowish brown

viscosity

270cps

50cps

Pot Life

50min ±10min(25℃)

Theoretical Amount Required

0.25 ± 0.1kg

Complete Curing  Time

24~36hours (25℃)

Mixing Ratio

2

1

packing

10kg

5kg
